APPLICATION:

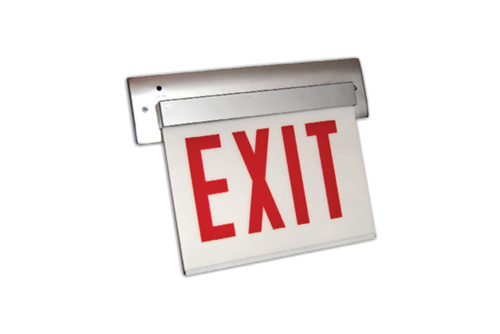

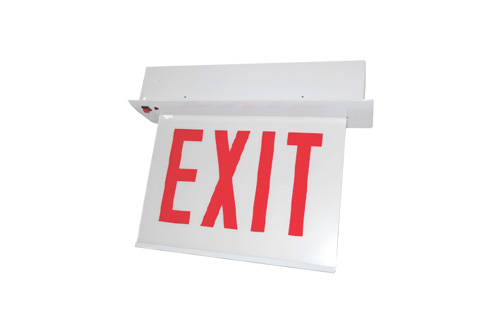

Ideal for commercial where economy, appearance and the ultimate ease of installation and maintenance are desired. LED compact and recessed decorative design Edge-Lite exit sign series utilizes a unique illumination design in an architecturally aluminum housing..

FEATURES:
- Energy efficient LED, recessed compact and decorative design.
- UV stabilized, silk screened acrylic panels provide consistent, uniform illumination.
- Single or double face configuration.
- Available in aluminum or white housing.
- Premium-grade, extruded aluminum housing.
- Trim asembly is easily detachable, providing accessilbility for service or maintenance.
- 120+ minute emergency operation.

MOUNTING:
- Campatible with drywall or drop-thru ceiling mount installations.
- Wall mount optional.

ELECTRICAL:
- 120V/277V dual voltage operation standard.
- Charge rate and power “ON” LED indicator light and push-to-test switch for mandated code compliance testing.

BATTERY:
- 4.8V long-life, maintenance-free, rechargeable NiCd battery on emergency (EM) units.
- Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
- Internal solid-state transfer switch automatically connects the internal battery to LEDs for minimum 120 minute emergency illumination.

LISTING:
- 5 years limited warranty on materials and all electronics. Battery pro-rated for five years.
- UL listed for damp locations. (0°C – 50°C / 32°F - 122°F)
- Meets UL924, NFPA 70, NFPA 101 and the Life Safety Code, NEC, OSHA, Local and State Codes.
- Meets city of Chicago requirements.
