APPLICATION:

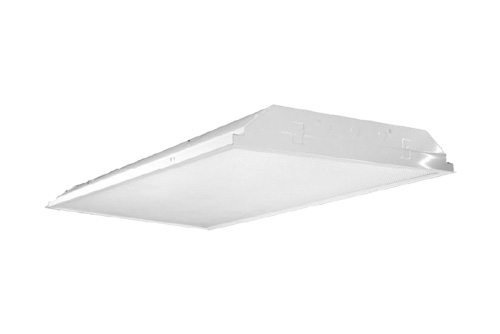

This recessed, low-profile designed with an acrylic lens, high performance luminaire provides general illumination. Its high efficiency, great performance and value make it an ideal choice for commercial and institutional environments.

FEATURES:
- 100% acrylic, clear prismatic, pattern #12 with minimum 0.1” thickness A12 lens as standard.
- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- Standard steel door frame allows easy lens replacement without tool. Unique door frame design delivers a premium extruded appearance. Smooth edges for easy handling. Powder-painted, door steel latches provide easy, secure door closure.
- Painted parts finished with high-gloss baked white enamel over rust inhibiting phosphate coating.
- PAF (Painted After Fabrication) finish is standard for corrosion resistance and efficiency.

MOUNTING:
- Recessed ceiling mount.
- Compatible with most ceiling types.
- Field installed flange kit. (available as option)

LED:
- High quality array LEDs.
- LM80
- Color Temperature: 2700/3000/3500/4000/5000 (K)
- Color Rendering Index: > 80
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours

ELECTRICAL:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Philips Xitanium: 0-10V Dim to 1%(PH).
- Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
- Generic : 0-10V 10% dim. (GR)
- Minimum starting temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

LISTING:
- ROHS.
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Recessed Luminaires, Type IC
- DLC listed.
- Suitable for damp locations.
- CEC Compliant EM (please contact for more information).
- 5 years limited warranty. - RGB+W has 2 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- ARRA compliant (optional).
- BAA compliant (optional).
- Trade Agreements Act compliant (optional). - LM-79 (DLC listed products only)
- Bluetooth Mesh System available, please contact factory for more information.
