APPLICATION:

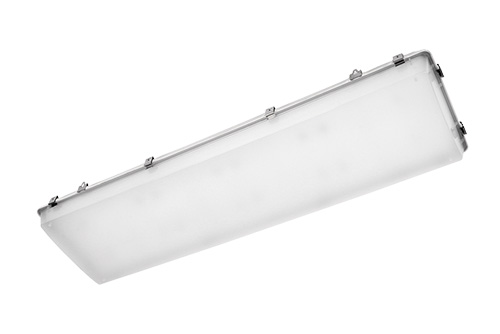

Enclosed and gasket LED Hi-Bay is appropriate for damp and wet locations as well as for protection against dust and other non-hazardous contaminants. It is often used in food industry, cold storage, warehouses, parking garages, commercial kitchens, car washing, utility tunnels, laundries and industrial facilities.

FEATURES:
- Vaportite fixture that features fiber glass housing with white powder coated iron gear tray, hinge at both side with tool less stainless steel latch for easy of accessibility and maintenance.
- One piece impact resistant Acrylic, frosted ends and side linear prism diffuser.
- Stainless steel latches as standard.
- Fixtures provided with black end plug, 7/8” housing end holes (2) - Snaps and locks tight to maintain tight seal of unused end holes.
- 86% minimum average reflective white power coated high gloss white reflectors or specular aluminum reflector.
- Housing utilizes off the shelf 1/2” fittings.
- Poured in place gasket helps seal the enclosures form most hostile environments.
- Optional Tamper resistance available.

MOUNTING:
- Compatible with chain, cable, dual pendant mount (by others)

LED:
- Color Temperature: 3000/3500/4000/5000 (K).
- LED Module: High efficency up to 173 LPW.
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
- Poke in wire connectors.
- Color variation within 3 MacAdam steps.
- LM80
- Color Rendering Index: > 80

ELECTRICAL:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Philips Xitanium: 0-10V Dim to 1%(PH).
- Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
- Generic: 0-10V Dim to 10%(GR).
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -4°F (-20°C) ~ 122°F (50°C) (Std.). -40°F (-40°C) ~ 122°F (50°C) (with LT option)
-31°F (-35°C) ~ 140°F (60°C) (with HT option)
- Constant Current, Class 2

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

LISTING:
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- NSF International certified.
- NEMA 4X certified.
- Suitable for damp and wet locations.
- CEC Compliant EM (please contact for more information).
- Assembled in USA.
- ARRA and BAA compliant.
- IP 67 rated.
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
