APPLICATION:

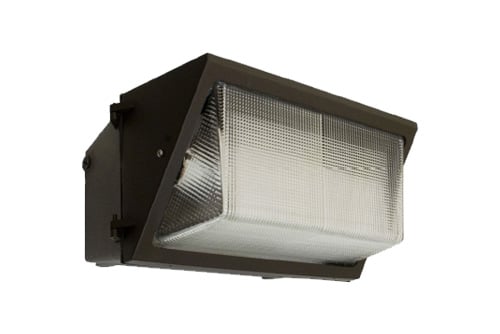

The borosilicate glass lensed wall pack is ideal for both commercial and residential applications with wall mounting. Use on factories, warehouses, self storage, commercial buildings, entrances, walkways and loading docks.

FEATURES:
- Die-cast aluminum housing and hinged door frame with prismatic borosilicate glass lens refractor.
- Door frame holds lens and seals to housing gasket with two stainless steel screws.
- Anodized aluminum reflector with wide beam spread.
- Housing has silicone gasket to seal to lens for wet location.
- Dark bronze finish is standard; white or black finish is also available.

MOUNTING:
- Wall mounting only.
- Easily installed on recessed junction boxes or direct mounts to the wall with feed thru 1/2” conduit access.

REFLECTOR & COVER:
- Anodized aluminum reflector with high efficiency and wide beam spread.
- Heat and impact resistant tempered clear prismatic glass lens.

LAMP:
- HID lamps will have mogul base (E39) porcelain socket with screw shell and center contact.
- Lamp included.

ELECTRICAL:
- MH ballasts are standard high power factor ballast with ambient operating temperature of -20°F (-30°C) to 108°F (90°C); 180°C insulation system.
- HPS ballasts are standard high power factor ballast with ambient operating temperature of -40°F (-40°C); 180°C insulation system.

LISTING:
- UL/CUL listed.
- Suitable for wet location.
- ARRA comliant (optional).
