APPLICATION:

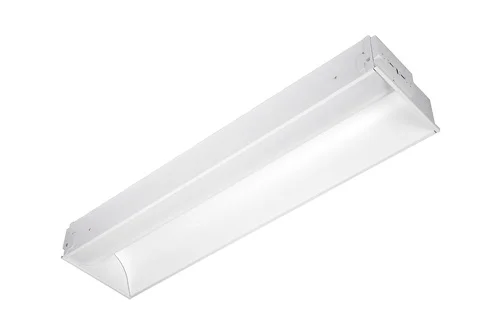

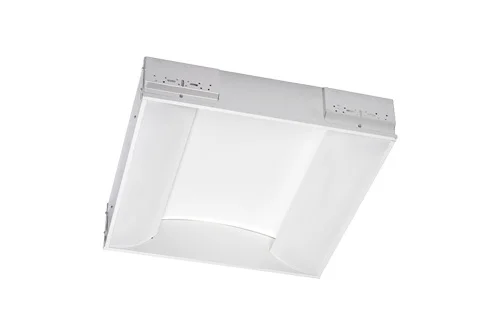

This attractive recessed fixture with side baskets provide soft ambient in direct and indirect lighting. Direct and Indirect asymmetrically distributed lighting fixture reduce shadows and glare by combining aesthetically please lighting. It is an excellent choice for modern office environments, classrooms, hospitals and retail spaces.

FEATURES:
- Die formed, cold-rolled, heavy gauge steel housing construction provides durability and strength.
- White powder coated housing.
- Slope side softly reflect light back downwards.
- Smooth edges for easy handling.
- T-bar safety clips are standard.
- Reflectors were finished in textured matte white powder coated paint for uniform light distribution and over rust inhibiting phosphate coating.
- PAF (Painted After Fabrication) finish is standard for corrosion resistance and efficiency.

SHIELDING:
- Perforated white metal basket with white acrylic lens.

MOUNTING:
- Recessed mount in expose T-bar ceilings, Internal T-bar safety clips.
- Field installed flange kits are available.
- Suitable for direct insulation contact.

LED:
- High quality array LEDs.
- LM80.
- Color Temperature: 2700/3000/3500/4000/5000(K).
- Color Rendering Index: > 82.8
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours

ELECTRICAL:
- High power factor electronic driver, operate from a 120 ~ 277 Vac input range, 50 / 60 Hz.
- Features included over voltage protection, surge, short circuit protection and over load protection.
- Power Factor: typical > 0.95, THD <20, meets Class1 or Class 2 circuit.
- Universal Lighting Everline : 0-10V Dim to 1%(ULT)
- Philips Xitanium: 0-10V Dim to 1%(PH).
- Osram Optotronic: 0-10V Dim to 1%(OS1) or 10%(OS).
- Generic : 0-10V 10% dim. (GR)
- Operating temperature: -4°F (-20°C) ~ 122°F (50°C).

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

LISTING:
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Suitable for damp locations.
- CEC Compliant EM (please contact for more information).
- IC Rated.
- ARRA compliant. (optional)
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
