APPLICATION:

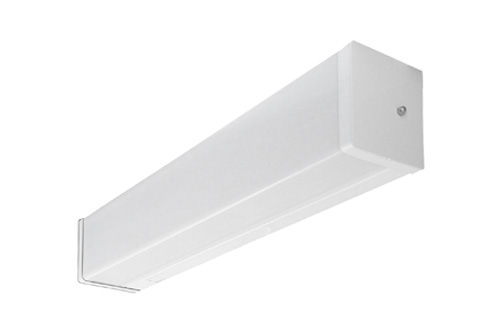

Wall/Ceiling mounted luminaire, and optional with integral ultrasonic motion sensor provides luminaire applications. Ideal for use in wall, corridors, stairwells, closets, laundry, bathrooms, dormitories, hallways and general work areas.

FEATURES:
- High-gloss white on die formed 20 gauge cold rolled steel housing and one-piece metal ends. Come as white finish (Std.)
- Clear prismatic acrylic diffuser; optional smooth white acrylic diffuser.
- Optional One piece slide-on ends.
- Optional integral ultrasonic occupancy sensor to sense motion within a space and automatically turn lights on.
- Wall or ceiling mounted.

LED:
- Color Temperature: 2700/3000/3500/4000/5000 (K).
- LED Module: High efficiency up to 140 LPW.
- Calculated L70: 122,000 hours
- Reported L70: +60,000 hours
- Poke in wire connectors.
- Color variation within 3-step MacAdam ellipse.

ELECTRICAL:
- High power factor electronic driver, operate from a 120~277 Vac input range, 50 / 60 Hz.
- Dimming Control: 0-10V 10%~100% (std.), 1%~100% (optional)
- Optional step dimming for bi-level application.
- Power Factor: +0.9
- Efficiency: +85%
- Ambient Operating Temperature: -22°F (-30°C) ~ 122°F (50°C).
- Constant Current, Class 2

ELCU-200
- Guarantees emergency lighting remains ON or is turned on when power to the control device is lost.
- Interfaces with fire alarm panel or security system.
- “Watchdog” feature allows emergency loads to be controlled in tandem with normal power loads.
- UL listed for use in emergency circuits.

LISTING:
- UL/CUL listed and labeled.
- Listed to UL 1598 and UL 8750.
- Suitable for damp locations.
- CEC Compliant EM (please contact for more information).
- Made in USA.
- BAA compliant (optional).
- Trade Agreements Act compliant (optional).
- 5 years limited warranty.
- 7 or 10 years limited warranty. (optional)
- Bluetooth Mesh System available, please contact factory for more information.
